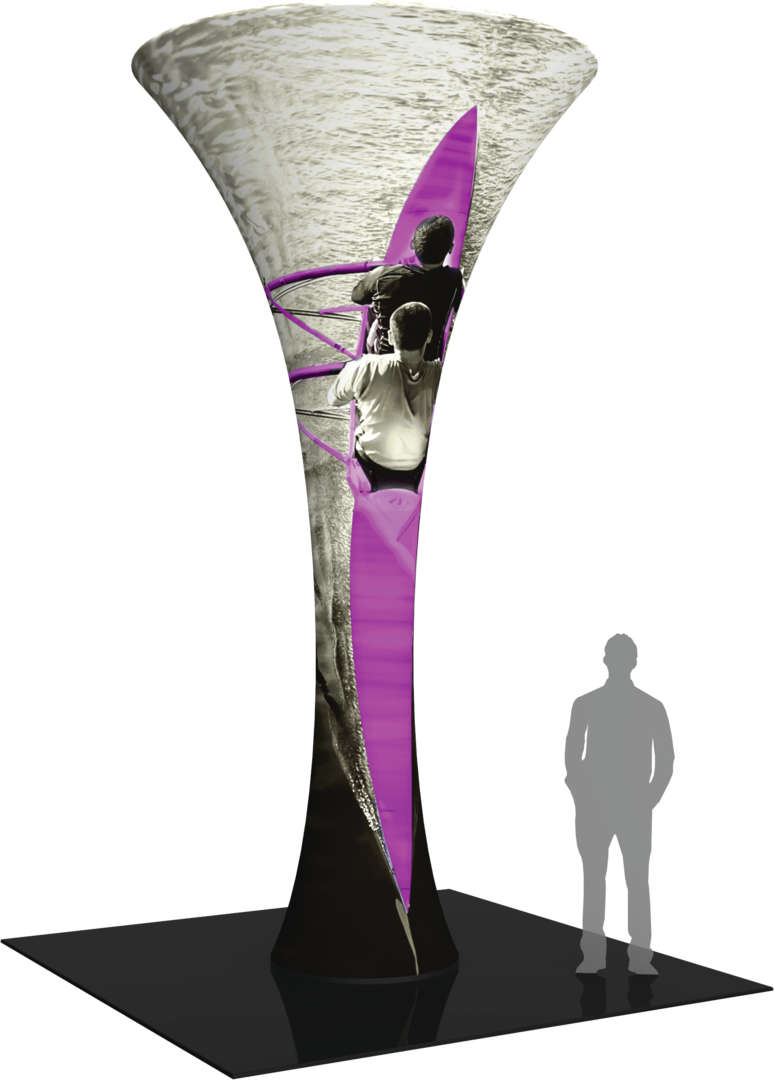

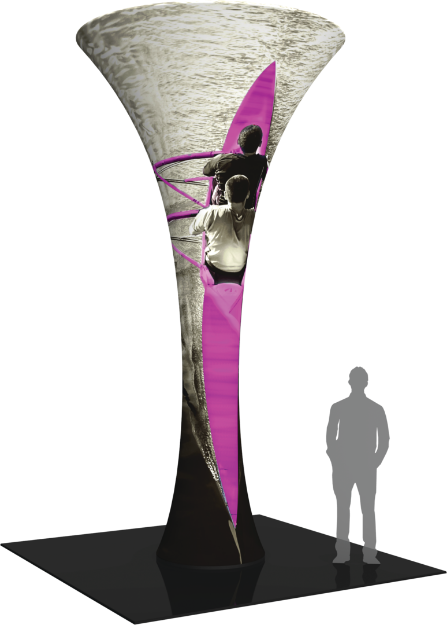

Formulate Funnel 02 Tension Fabric Structure

The 16ft Formulate® Fabric Funnel 02 can transform any environment through form, fabric and lighting. Formulate Funnel 02 measures 16ft tall, and features a heavy-duty wooden base and silver powder coated truss interior to create a dynamic, towering structure that commands attention. Fabric graphics feature a zipper at the top and a silicone edge at the bottom for easy assembly. Accent LED light kits are not included, but can be purchased a la carte to add a glow within the funnel. Funnel 02 packs down into two wheeled OCH2 cases for easy storage and transport.

$0.00

SKU: ^^FUN-02^^

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Graphic: *

Hardware: *

Design Service Required ? :

Yes [+$100.00]
No
Decide Later

Qty:

+ -

Overview
Specifications
Reviews
Contact Us

- State-of-the-art 30mm curved aluminum tube frame with expanding spigots
- Easy to store and ship
- Quick to set up
- Kit includes: one frame, one dye-sublimated zipper pillowcase graphic, and two wheeled molded OCH2 storage cases (base packs separately)
- 42" diameter at base

Products specifications

Attribute name	Attribute value
orb_hw_warranty_icons	Lifetime Warranty
Hardware Only Weight	139.5 lbs
Shipping weight	219.5 lbs
Feature icons	Made in North America , Product includes carry bag or case , Product can be recycled , Rental Product
Setup instruction link	https://s3cdn.theexhibitorshandbook.com/instructionsheets/formulate-tension-fabric/funnels-and-towers/funnels/IS_FUN-02.pdf
Assembled dimensions	98.5"W x 188.41"H x 98.5"D
Shipping dimensions	Ships in: 2 x OCH2 (52"L x 29"H x 15"D)
Total display weight	159.5 lbs
Video Link	https://vimeo.com/67730511
Cad files link	https://s3cdn.theexhibitorshandbook.com/cad/formulate/architectural-structures/funnels-and-towers/funnels/CAD_FUN-02.zip
orb_graphics_warranty_icons	Graphics 1 Year Warranty
Graphic width	95.21"
Graphic height	200"
Graphic template link	https://s3cdn.theexhibitorshandbook.com/graphictemplates/formulate-tension-fabric/funnels-and-towers/GT_FMLT-FUN-02.pdf
Graphics Only Weight	20 lbs
Funnel tower height	16'
Funnel tower shape	Funnel
